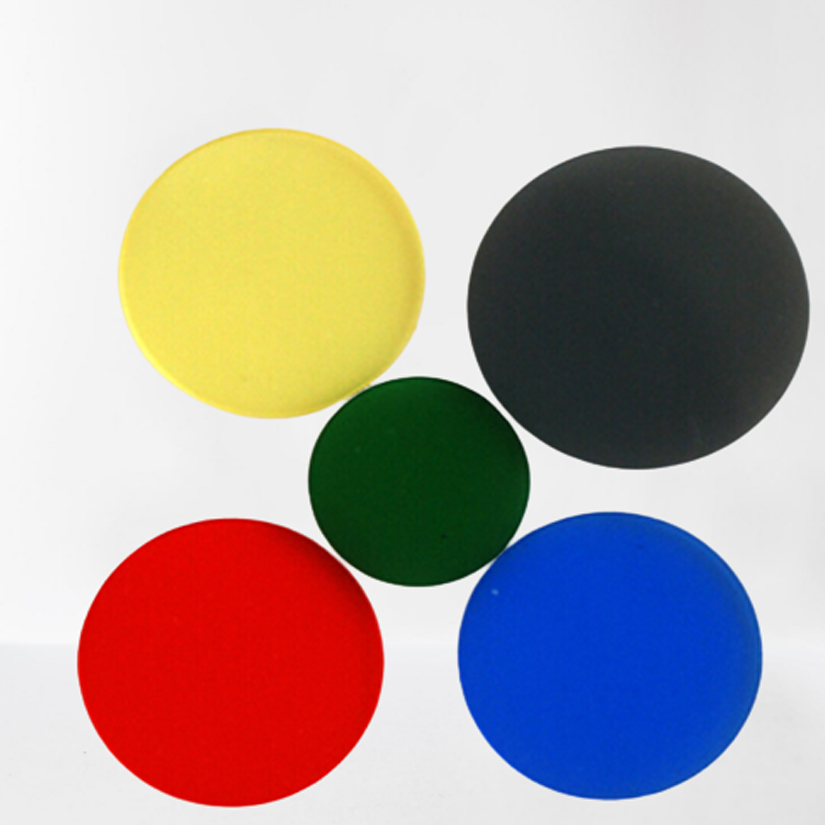

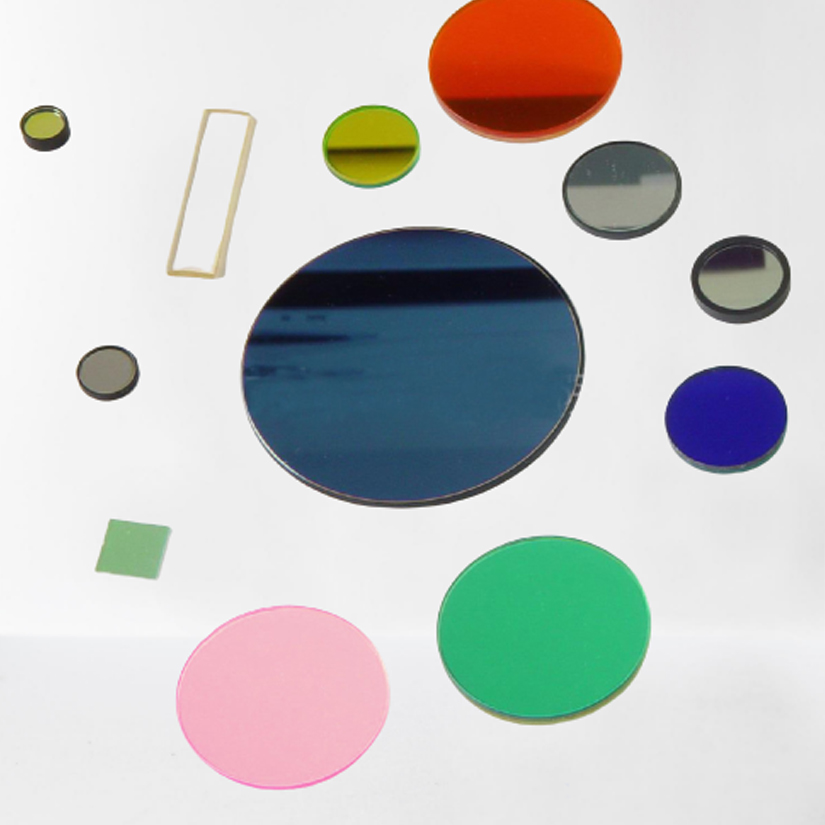

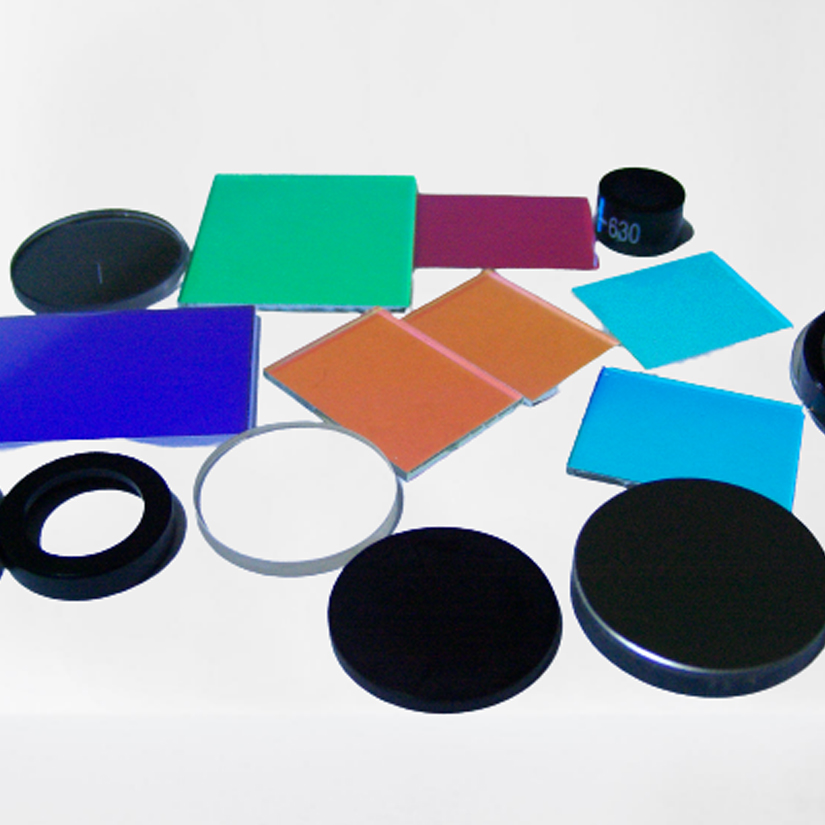

It's fabricated by special color glass material. Color Glass Filters are designed by their manufacturers to transmit and/or absorb different wavelengths of light. Tian Cheng optics can supply a full range of filters. They are short pass, long pass, bandpass, ultraviolet, infrared, heat absorbing, and color temperature conversion filters. There are colored glass filters like blue/ yellow/ red/ purple/ green/ orange glass lens filters. We use material by China to Schott, Hoya, and other manufacturers to process them.
Material | Color Glass from Schott or Equivalent |
Diameter Tolerance | +0.00, -0.15 mm |
Thickness Tolerance | ±0.2 mm |
Clear Aperture | >85% |
Surface Quality | 60-40 Scratch And Dig |
Parallelism | < 3 arc Minute |
Wavefront Distortion | 1λ per 25 mm @632.8 nm |
Protective Bevel | <0.25 mm x 45° |
Coating | Uncoated |
Color Glass Filter Standard Products:
Dimension (mm) | Ф12.7x2.0 | Ф25.4x2.0 | 12.7x12.7x2.0 |
Color | Part No. | Part No. | Part No. |
Red | TCF101 | TCF201 | TCF301 |
Green | TCF102 | TCF202 | TCF302 |
Blue | TCF103 | TCF203 | TCF303 |
Yellow | TCF104 | TCF204 | TCF304 |
Magenta | TCF105 | TCF205 | TCF305 |
If you would like to build your own precision optical products or request a quote, please click one of the two buttons below. Otherwise, please fill out the form below with any questions or concerns.
